1RU Optical Line System

AX-801

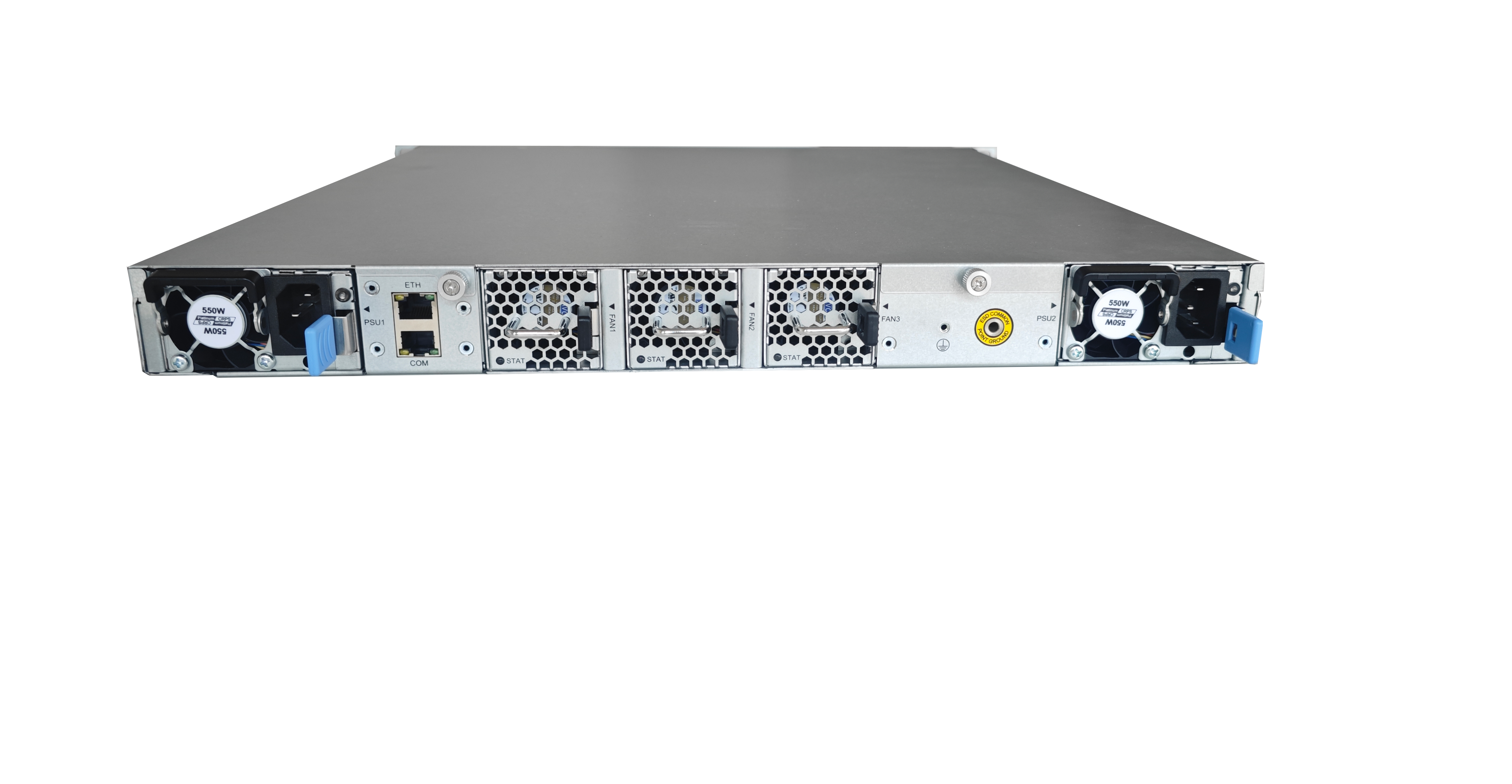

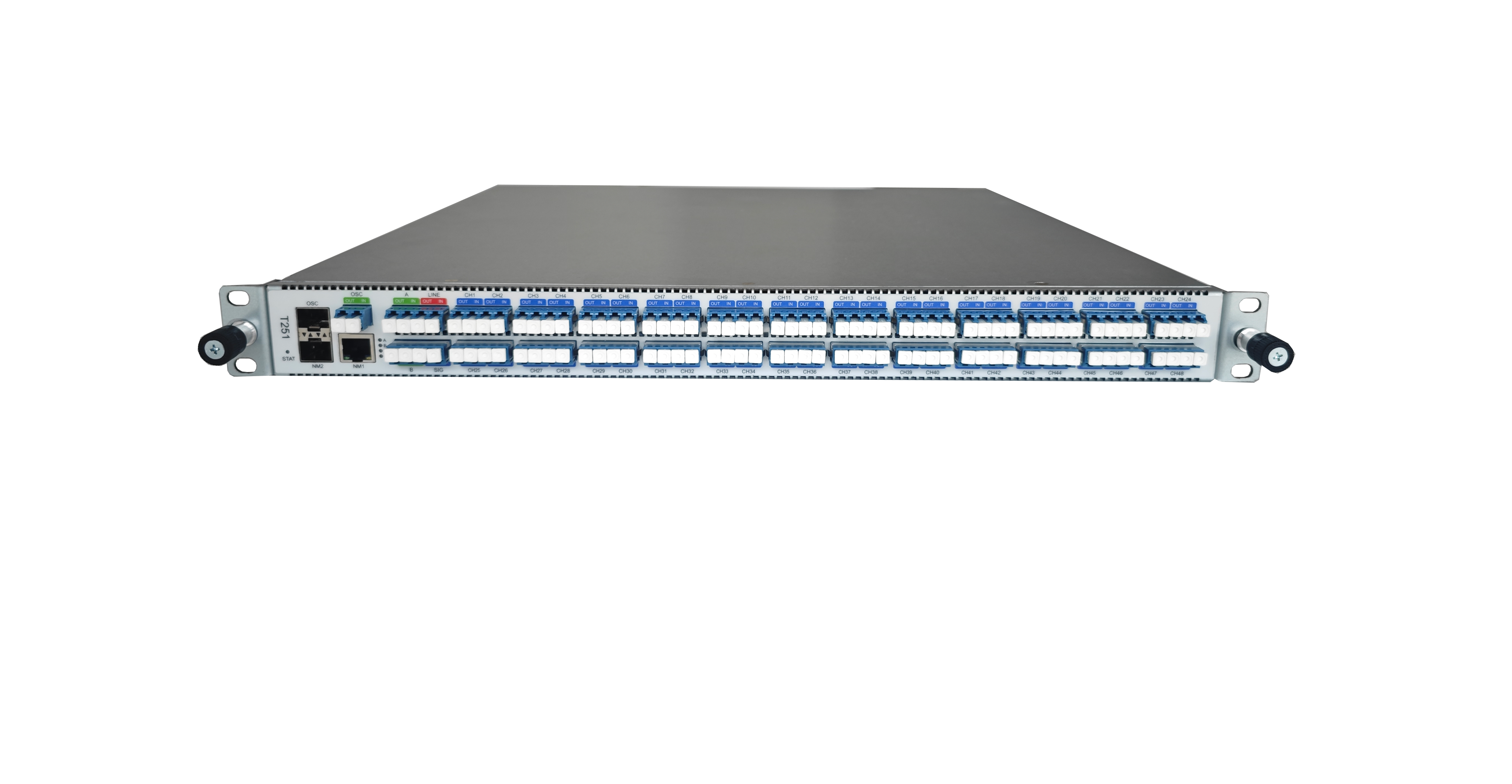

AX-801 front view AX-801 rear view

A space-efficient open line system with integrated optical vMux/DeMux, EDFA, OCM, OLP and optional OTDR.

  • 1RU chassis and 460mm depth, suite for 19/21/23 inch rack installation
  • Support 1+1 CRPS power module, 220V AC, high voltage DC, 48V DC power suppliers, and DC+AC hybrid mode
  • Support 2+1 Fan pluggable, front to end air flow
  • Support 48/32 fixed grid or 32 flexiable grid wavelength with per channel power adjustment functions
  • Built-in booster optical amplifier with maximum total output power of 21.5dBm and pre-optical amplifier with variable gain of 22~35dB
  • Built-in Optical channel monitor (OCM) and optical line protection as well as optional online OTDR
  • Support Auto Power Control and Dynamic Gain Equalization
  • Support 10G/1G/100M outband network management
  • Support outband and inband OSC networking management
  • Unified network management with NETCONF / CLI / SNMP/ TELEMETRY for easy integration with 3rd party system
Get Spec
2RU OLS and Transponders

AX-802

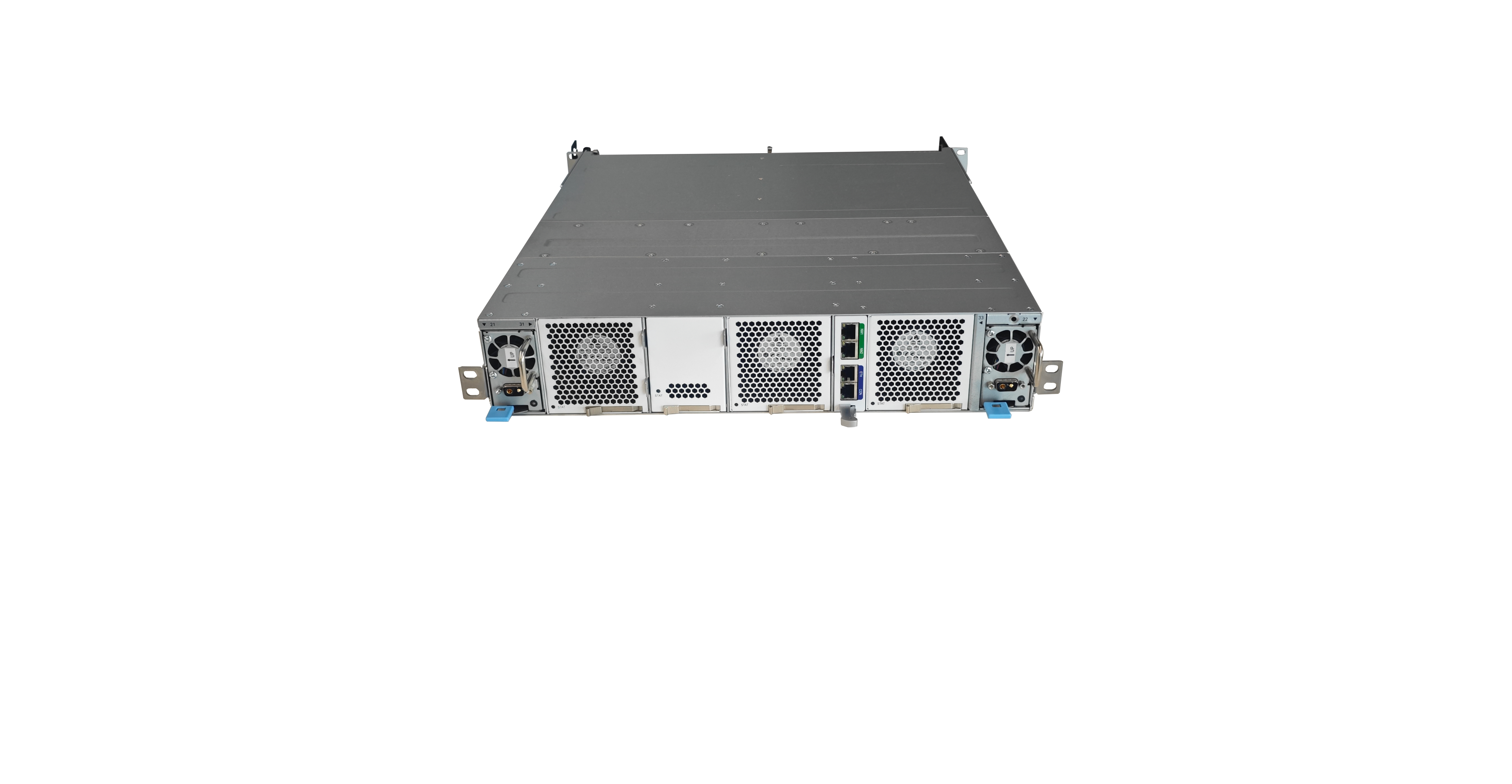

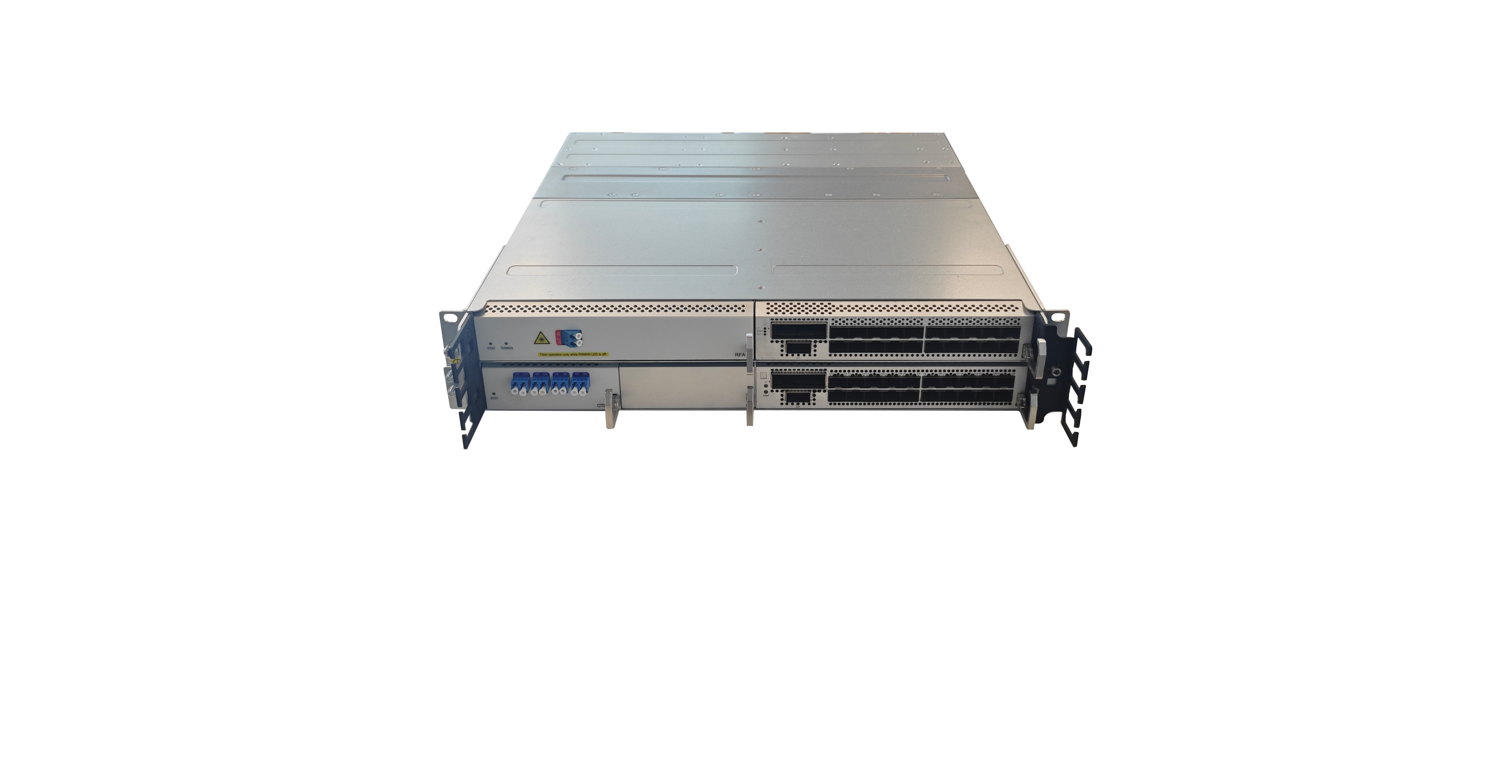

AX-802 front view AX-802 back view

A higher-capacity and modulized optical transponder and line system

2RU chassis supports optical line system and up to 6.4Tb/s transponder capacity

  • 2RU chassis, 480mm in depth, supporting 4/8 service slots. The same chassis for both transponders and optical line system
  • Support 220V AC, high voltage DC, 48V DC power suppliers
  • Support redundancy of main control, power supply and fan.
  • Support up to 6.4T transmission capacity with 200G/400G/800G/1.2Tb/s per wavelength coherent optical transmission technology in the modulation format of QPSK, 16 QAM and 64QAM coding modes
  • Support 100GE, 100GE FlexE, OTU4, 10GE, OTU2, STM64, 10G WAN, 8G~32G FC and other service interfaces
  • Flexible optical layer, support 32/48/96 waves, FOADM, and ROADM in C-band
  • Support online OTDR/OCM diagnosis and 1588 clock synchronization
  • Support protection of OTS, OMS, and OCH with absolute and relative threshold value
  • Support 100M and 1Gigabit management channels with OSC signals
  • Unified network management, providing NETCONF / CLI / TELEMETRY / OpenConfig for easy integration with 3rd party system
Get specs
Super-rail OLS and Transponders

AX-804

Ultra-high-capacity open line system and/or transponders with AI agent-ready management interfaces.

Product is under planning

Network Management Product

Based on the standard NETCONF/YANG protocol interfaces and ready for AI agent to manage the equipment through Model Context Protocol (MCP)

Network Management Product

AX-NET

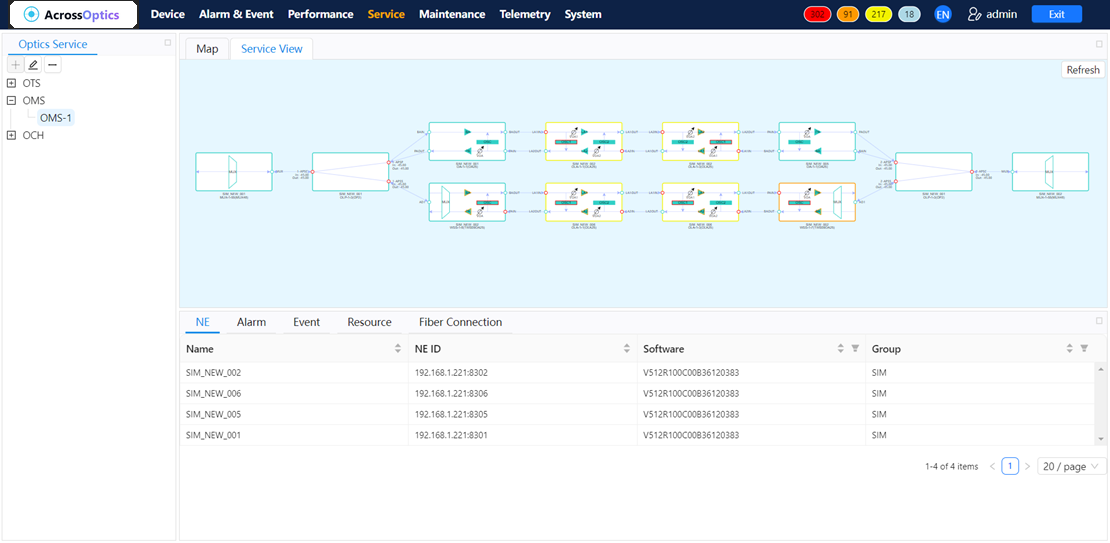

AX-NET TNMS screenshot
  • Unified network management system for all AX series optical transport products， providing a consistent user interface for different types of equipment
  • Provide friendly network topology diagram and device graphic display
  • Quickly establish end-to-end optical layer and electrical layer services, and provide real-time monitoring of service-based resources, faults and performance
  • Provide graphical display of OTDR, OCM test data
  • Provides Telemetry configuration, subscription and display functions
  • System multi-role support, providing different views and permissions for managers, network builders, operation and maintenance person, etc.
  • Store the historical information of the device, provide multi-dimensional data for later analysis and generate reports
  • MCP-based AI interface for autonomous network management
Network Management Product

AX-GUI

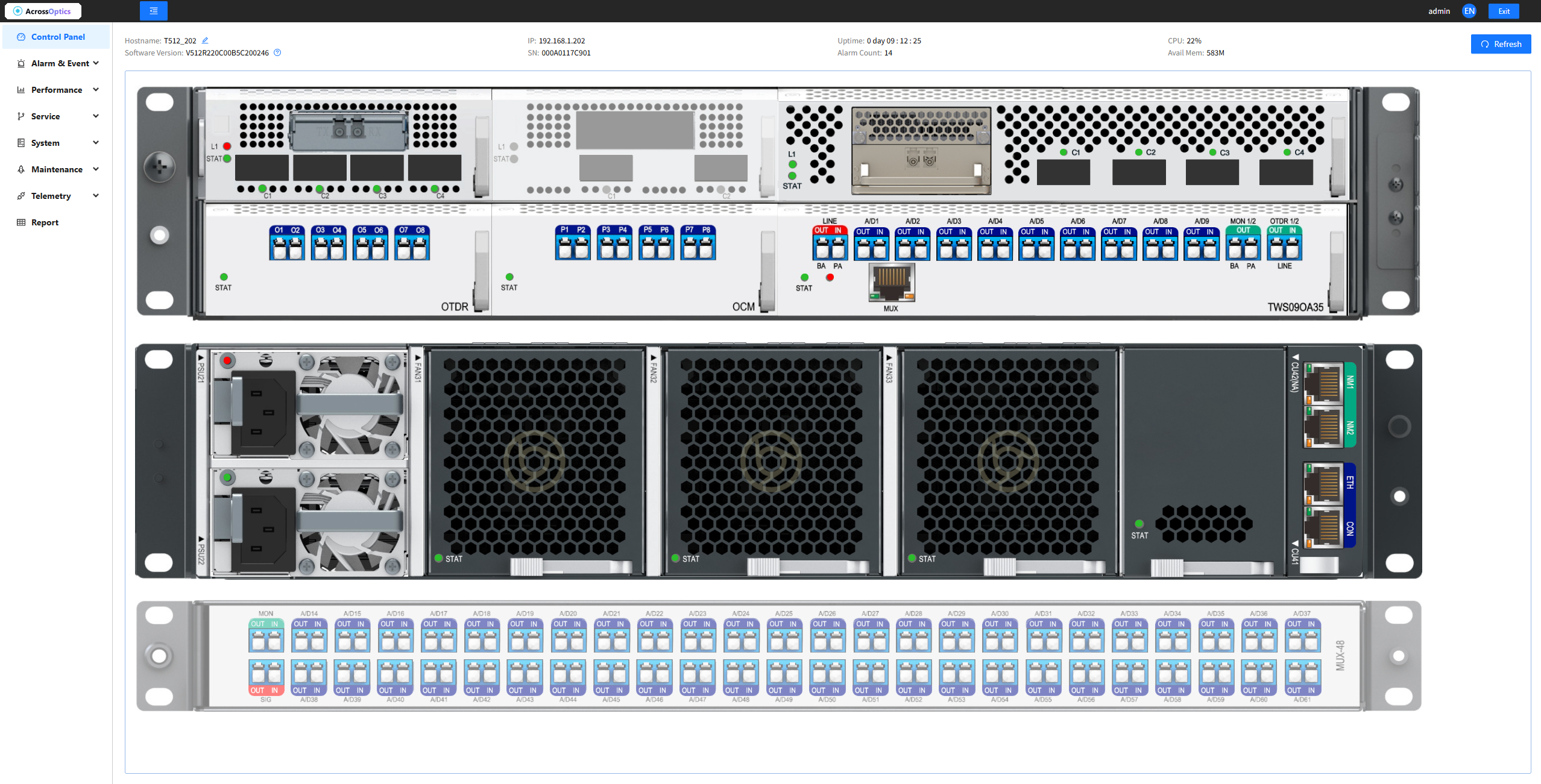

AX-GUI screenshot
  • Adopt modern web technology, easy usage and user-friendly interface
  • Support full set of network configuration and management
  • Real time monitor, including alarm, notification and event
  • GUI based equipment panel, service topology, performance diagram
  • Flexible deployment in embedded device or remote host
  • Safety guard and invasion prevention
Coherent Optics

400G CFP2 DCO

  • Tx output power: -10dBm~ 1dBm with build-In Amp
  • Receiver sensitivity: > -21 dBm@400G; > -29dBm@200G
  • OSNR: 23dB@400G; 14.8dB@200G
Coherent Optics

400G QSFP-DD ZR+/ZR+ High Power

  • Compliant to Open ZR Standards
  • Support DP-16QAM(400G) Modulation
  • Full flexgrid C-band tunable: 191.3~196.1THz
  • Tx output power: ZR+: -13dBm ~ -8dBm; ZR+ High Power: -13dBm ~ +3dBm
  • ROSNR: ZR+: 24dB@400G; ZR+ High Power: 22.5dB@400G
  • Max Power Consumption: ZR+: 21W; ZR+ High Power: 23W
Coherent Optics

800G MSA Embedded DCO

  • Tx output power: -10 ~ +2 dBm with build-In amp
  • Receiver sensitivity: > -14 dBm@800G ; > -22 dBm@400G
  • OSNR: 23dB@800G，17.0dB@400G
Coherent Optics

800G OSFP ZR+

  • Tx output power: > 1dBm with build-In amp
  • Receiver sensitivity: > -20.5dBm@800G ; > -27 dBm@400G
  • OSNR: 24dB@800G，17.5dB@400G
